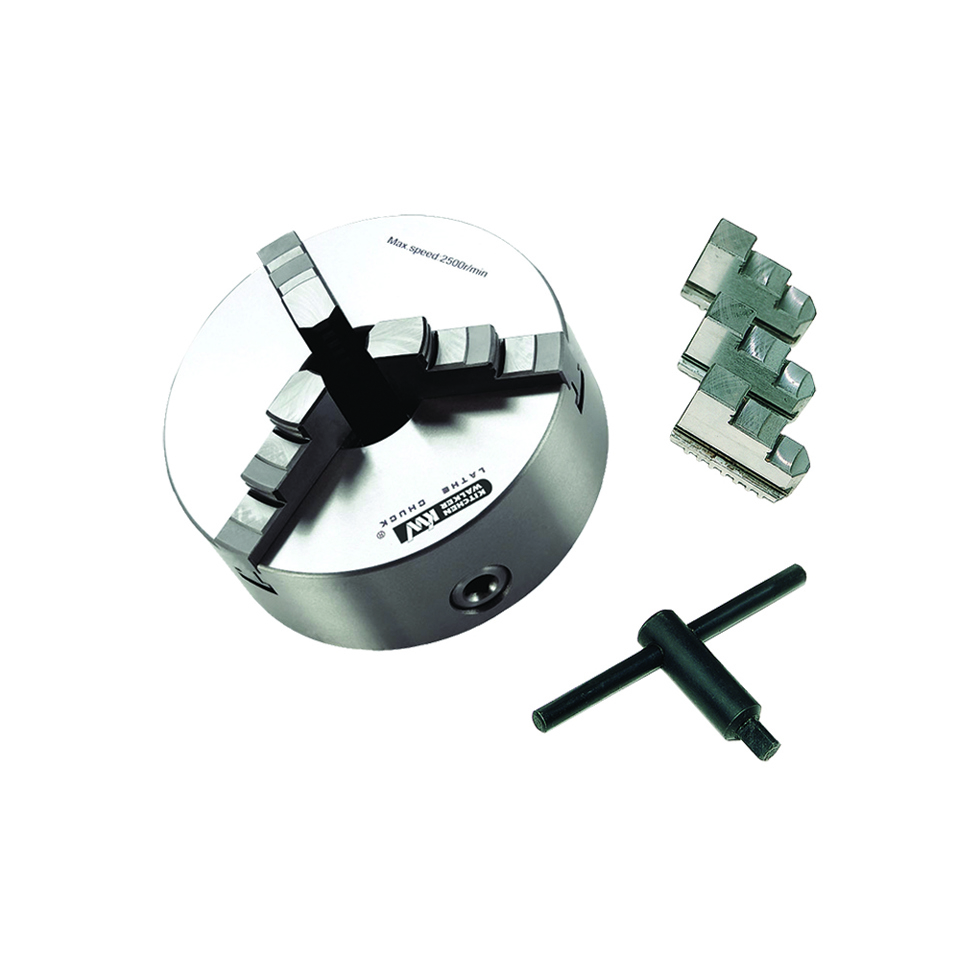

Quality Lathe Jaw Chucks for metal work.
All chucks are fully ground and work to a permissible error of 0.064mm at 50mm from chuck jaws.
Each chuck comes with 1 set internal and 1 set external jaws and chuck key.

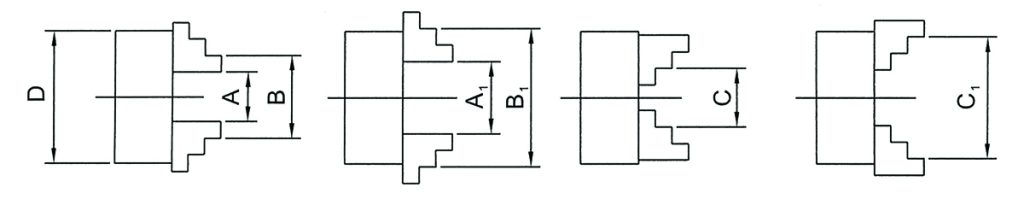

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 200mm | 4-85mm | 65-200mm | 65-200mm |

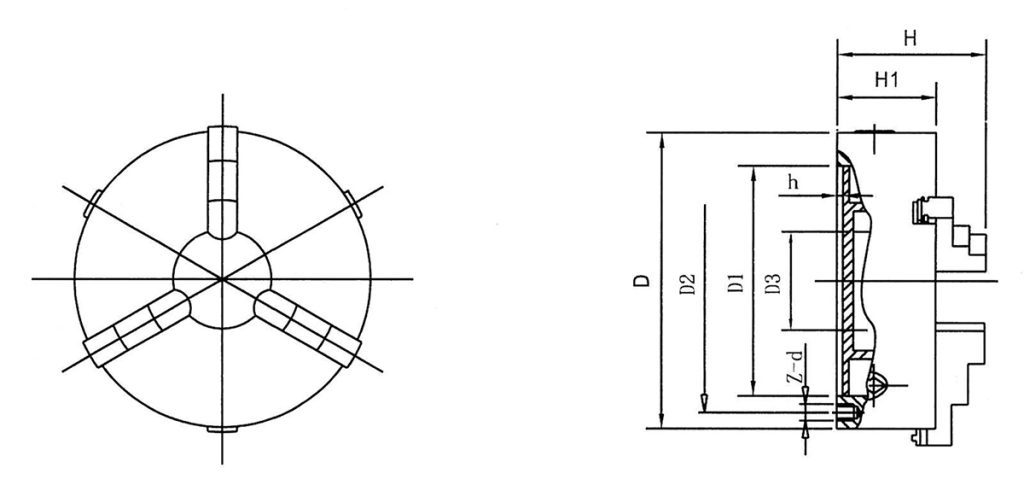

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 200mm | 165mm | 180mm | 65mm | 75mm | 6mm | 3mm M10 | 109mm |
