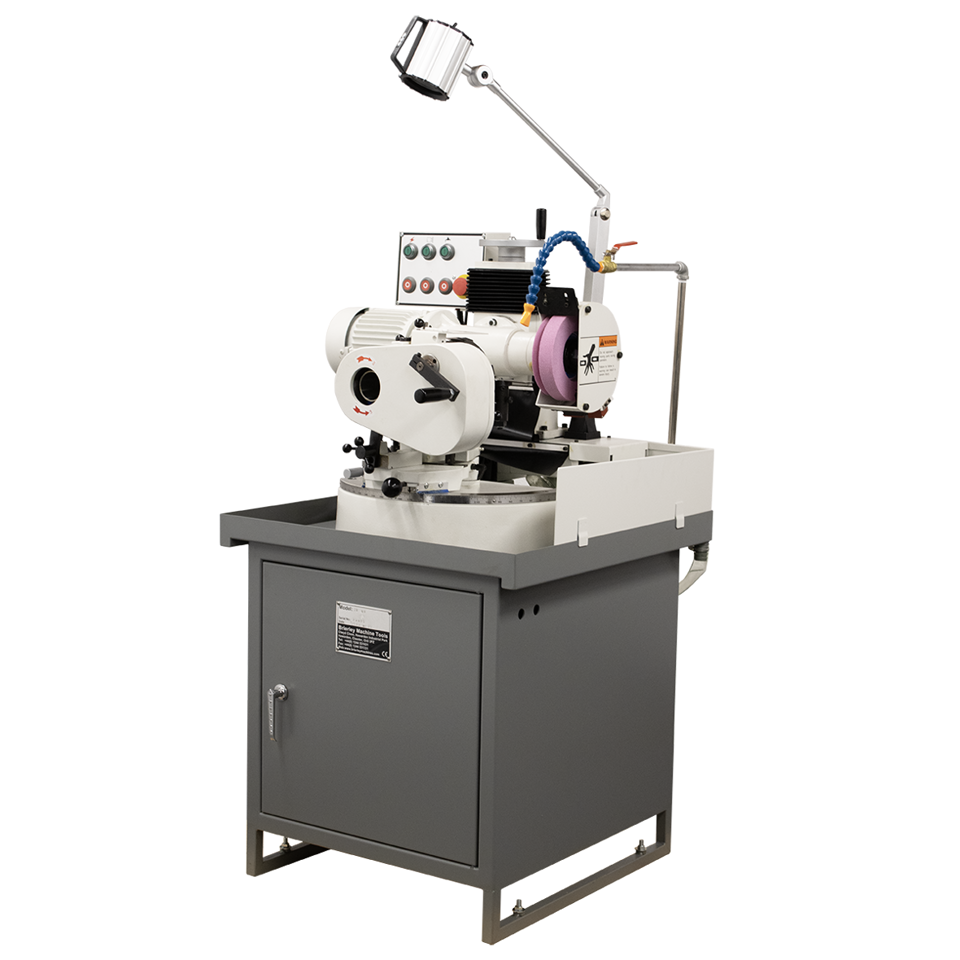

Our cutter grinder is ideal for creating accurate points with ease.
Accurate. Rugged construction and precision components ensure accuracy and repeatability over many years.
Heavy duty compound slides and one-piece cast iron base increase rigidity and minimise vibration.
The workhead incorporates precision needle roller and thrust bearings, while the main chuck spindle utilises a rotalin bearing, giving less than 0.005 mm deflection.
The six-jaw chuck accurately centres the drill to ensure each cutting lip is equally ground for both length and angle to develop a precision point.
Versatile. A wide range of points can be ground: Right-hand and left-hand drills with point angles between 40o and 180o, standard, centre drills, carbide drills, step and subland drills, taps and reamers.
Also a number of NC self-centre points can be ground, including split, four-facet and spiral. Cutting lips can also be corrected.
| MODEL | ZB50 |
| Drill Size | (Ø3-Ø50mm) straight or taper shank (1,2,3,4,5,6 flute) |
| Point Angles | 40º-180º |
| Clearance angle | 0º-18º |
| Motor | 0.38kw(0.5hp) single or 3 phase totally enclosed fan cooled |
| Grinding Wheels | Main wheel 7” x 1 ¼” x 1 ¼” |
| (180mm x 32mm x 31.75mm) |
| Point thinning dish wheel |
| 6 5/8”x7/8”x1 1/4” |
| (165mm x 21mm x 31.75mm) |
| Grinding the End of End Mills | 2,3,4,6,12 flute |
| X Stroke | 240mm |
| Y Stroke | 180mm |
| Net Weight | 300kg |
| Dimensions | 970mm x 910mm x1370mm |
Standard Accessories
• 6 Jaw Self-Centering Chuck
• Grinding Wheel (recessed one side)
• “Dish” Grinding Wheel for Point Thinning
• Grinding Wheel Flange and Balancing Weight
• Two Grinding Wheel Diamond Dressers (one angle dresser and one straight)
• No. 1,2,3,4 Morse Taper Sleeve
• Cam No.4 for Point Angle (40º-180º)
• Cam No.6 for Step Drill
• Cam No.8 for 4 Flute Taps or Reamers
• A.C. Motor
• Tools for General use
• Service/Instruction Manual
• Work Light (12 Volts)
Optional Accessories
• Flood Coolant System. (Increases wheel life and prevents burning of drill)
• Silicon Carbide and Diamond Wheels for Carbide Drills
• Radial Relief Attachment. Relieves Radius of Pilot to Produce Lands. Also for Sharpening End Mills
• Wheel Balancer & Arbor
• Auto Feed Mechanism (pre-setting feeding quantity)
• Powered Work head for Automatic Rotation & Cam Action (rpm 0-58 step less)
• Extra Grinding Wheel Flange for Cup Wheel
• Cup Grinding Wheel
• Cam for Left Hand Drills
• Cam for Spiral Point Drills
• Cam for Sheet metal Point Drills
• Cam for 1 Flute Grinding
• Cam for 3 Flute Grinding
• Cam for 5 Flute Grinding
• Cam for 6 Flute Grinding
