- Machine Body is Resin Sand, Non Reniun Force Advanced Casting.
- X/Y/Z Axis Taiwan Class P Liner Guide Way, Imported Double Nut Ball Screw.
- Table HT300 High Frequency Quenching.
- NSK Bearings.

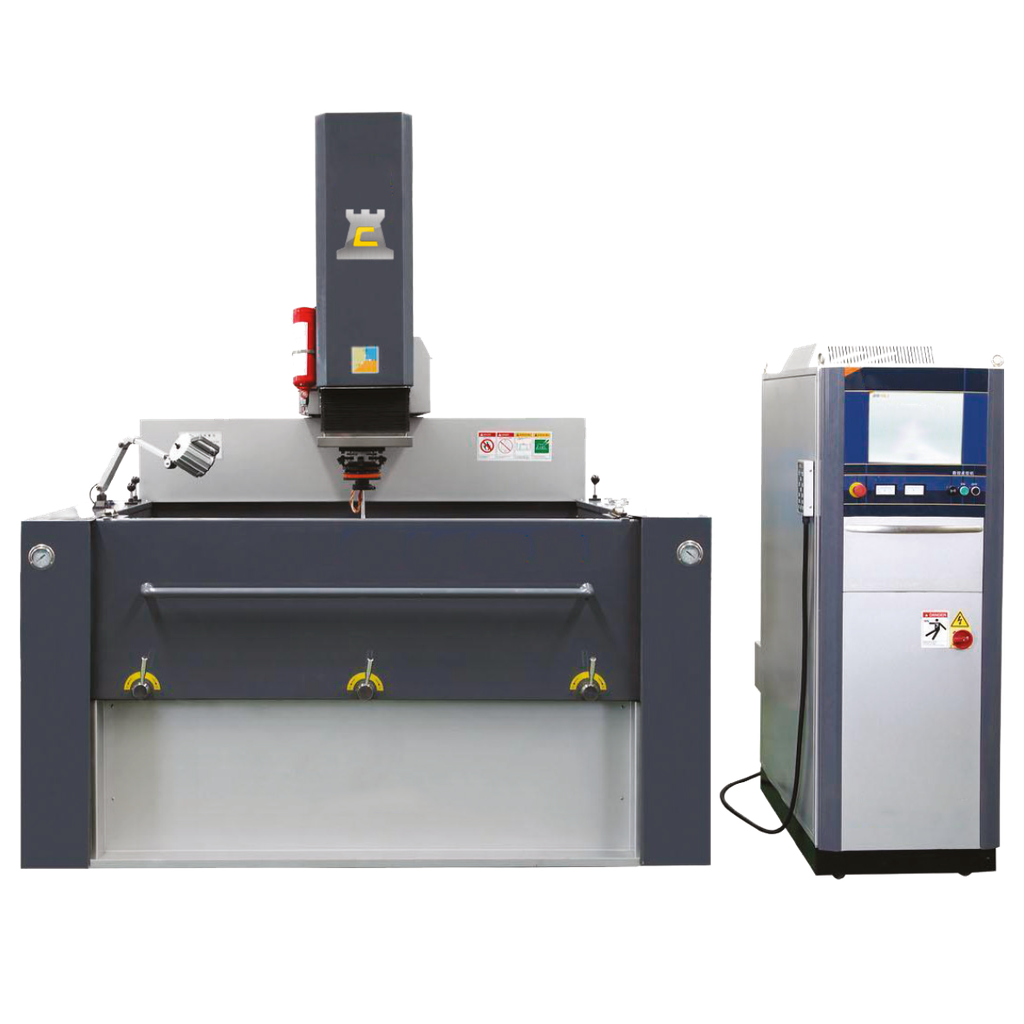

High performance CNC EDM Sinker Machines. With Digital Servo System Drive 3 Axis, and Interactive Interface.
• Digital Servo System Drive 3 Axis, Flexible Serve Strategy choice.
• Interactive Interface, Simple, Intuitive and Convenient.
• Real Time Monitoring of Single Pulse. Extensive Machining Database for easy Operation.
• Safety Devices for Level Control, Liquid Temperature Control, Fire Control, Arcing.
• Short Adaptive Processing. ISO-G Code Program.
| Model | EDM26090C |
| Working Tank | 4500x1800x700mm |
| Working Table Size | 3500x1200mm |
| Travels |
|
| X Axis | Double Spindle:2600mm |
| Y Axis | 900mm |
| Z Axis | 680mm |
| Max.Distance between Electrode and Working Table | Min:650mm; Max:1330mm |
| Work Table Load Weight | 15000kg |
| Spindle Hold Weight | 350kg |
| Tank Oil Level Limitation | 560mm |
| Size of Oil Reservoir | 8970L |
| Servo Control Type | AC |
| Rated Current | Single Spindle:100A
Double Spindle:200A |
| Oil Tank Size | 3300x3000x700*2mm |
| Machine Dimensions | 5200x4600x4500mm |
| Machine Weight | Double Spindle:28000kg |
Standard Accessories:
• Controller
• Oil Tank
