- Machine Body is Resin Sand, Non Reniun Force Advanced Casting.
- X/Y/Z Axis Taiwan Class P Liner Guide Way, Imported Double Nut Ball Screw.
- Table HT300 High Frequency Quenching.
- NSK Bearings.

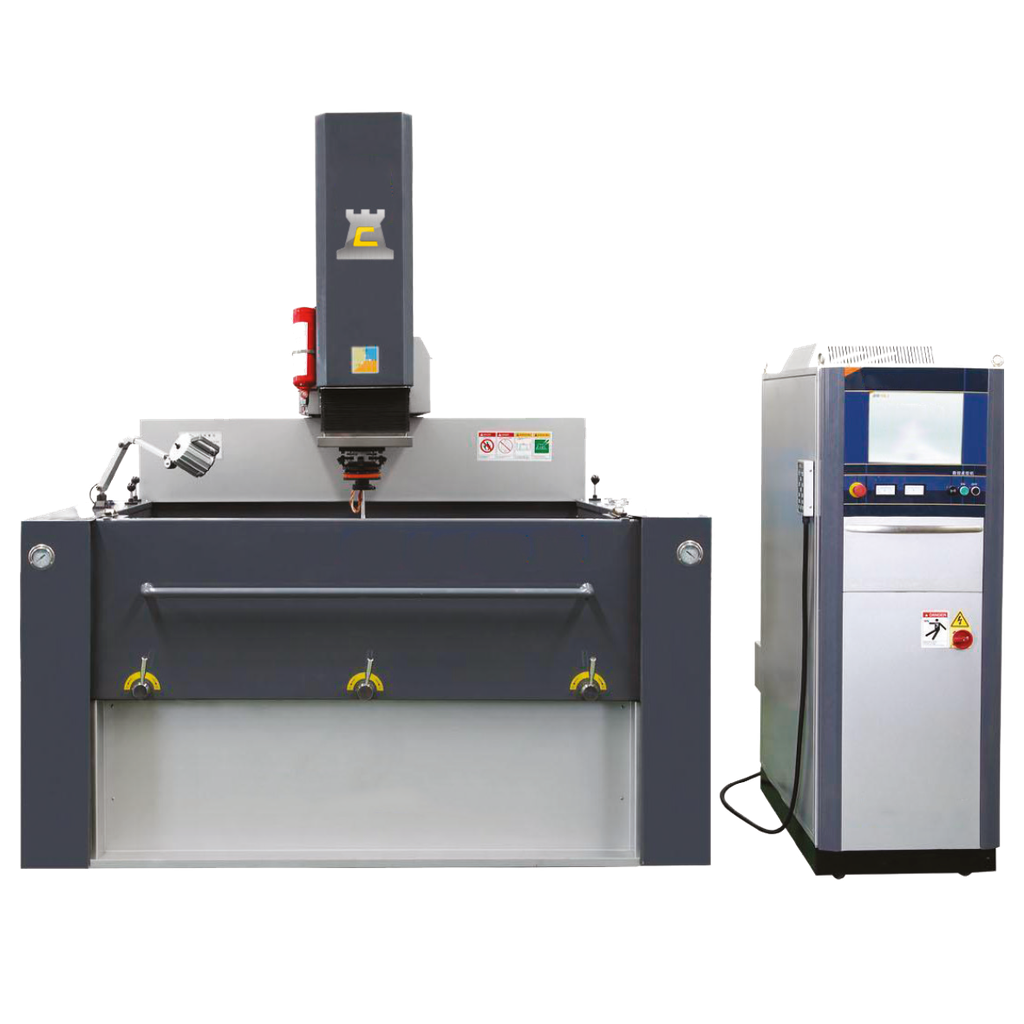

High performance CNC EDM Sinker Machines. With Digital Servo System Drive 3 Axis, and Interactive Interface.
• Digital Servo System Drive 3 Axis, Flexible Serve Strategy choice.
• Interactive Interface, Simple, Intuitive and Convenient.
• Real Time Monitoring of Single Pulse. Extensive Machining Database for easy Operation.
• Safety Devices for Level Control, Liquid Temperature Control, Fire Control, Arcing.
• Short Adaptive Processing. ISO-G Code Program.
| Model | EDM8550C |
| Working Tank | 1800x1100x570mm |
| Working Table Size | 1150x600mm |
| Travels |
|
| X Axis | 850mm |
| Y Axis | 500mm |
| Z Axis | 400mm |
| Max.Distance between Electrode and Working Table | Min:400mm; Max:800mm |
| Work Table Load Weight | 3000kg |
| Spindle Hold Weight | 180kg |
| Tank Oil Level Limitation | 350mm |
| Size of Oil Reservoir | 750*2L |
| Servo Control Type | AC/DC |
| Rated Current | 100A |
| Oil Tank Size | 2000x1110x500*2mm |
| Machine Dimensions | 2040x2320x2690mm |
| Machine Weight | 4300kg |
Standard Accessories:
• Controller
• Oil Tank
