Our Hawk TC-200L 2 Axis CNC Machine, comes complete with auto oil lubrication system and hydraulic system.
| Model | HAWK TC-150L |
| Processing Range |
|
| Max. Swing Over Bed | Ф450mm |
| Max. Swing Over Saddle | Ф230mm |
| Max Turning Diameter | Φ350mm |
| Max. Turning Length | 445mm |
| Max. Bar Capacity | 44mm |
| Spindle |
|
| Max. Spindle Speed | 6000rpm |
| Spindle Nose | A2-5 |
| Spindle Bore | Φ56mm |
| Spindle Taper | Morse 6# |
| Height from Spindle Centre to Ground | 940mm |
| Axis X/Z |
|
| Travel X/Z | 200/455mm |
| Rapid Travel Speed X/Z | 24/30mm |
| X axis ball screw dia/pitch | Φ32/8mm |
| Z axis ball screw dia/pitch | Φ32/10mm |
| Hydraulic Turret |
|
| Tool Position | 8 |
| Turning Tool Size | 25 x 25mm |
| Boring Holder Diameter | Ф40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z | 0.006/0.006mm |
| Repeatability X/Z | 0.004/0.004mm |
| Other |
|
| Power Capacity | 25Kva |
| Spindle Motor Power | 7.5/11kw |
| Machine Dimension (LxWxH) | 3660 × 1790 × 1720mm |
| Net Weight | 3400kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 6000rpm belt drive spindle (Siemens 828D)

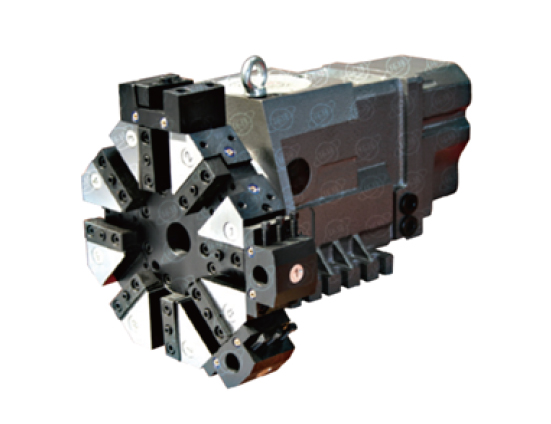

- 8 position servo turret
- 6″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic System
- Auto chip conveyer (rear) & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
