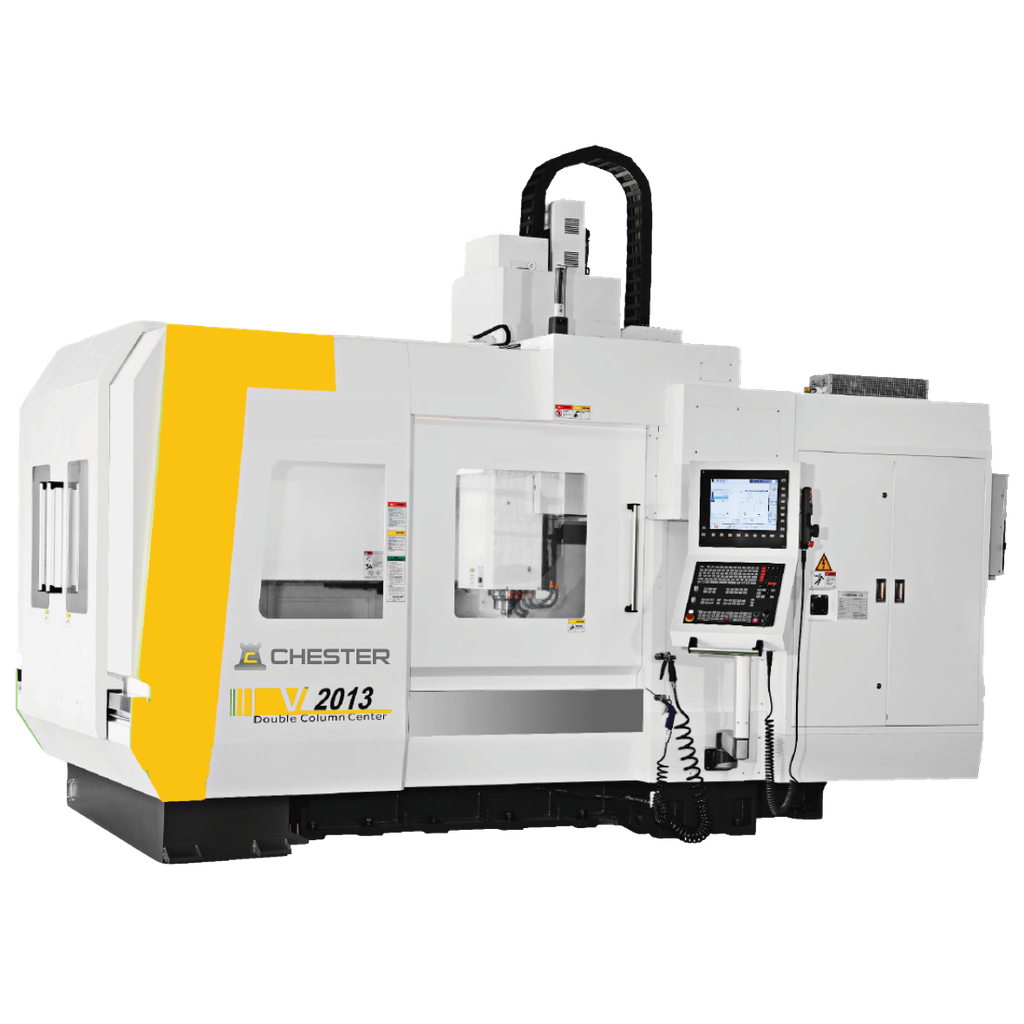

CHESTER V2013 DOUBLE COLUMN MACHINING CENTRE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 2100 x 1200mm
Spindle Taper: SK50 / BT50 / CAT50
CNC Machining Centres
The Chester V2013 is ideal for production and processing of workpieces with complex profiles, designed to process large and thick workpieces.

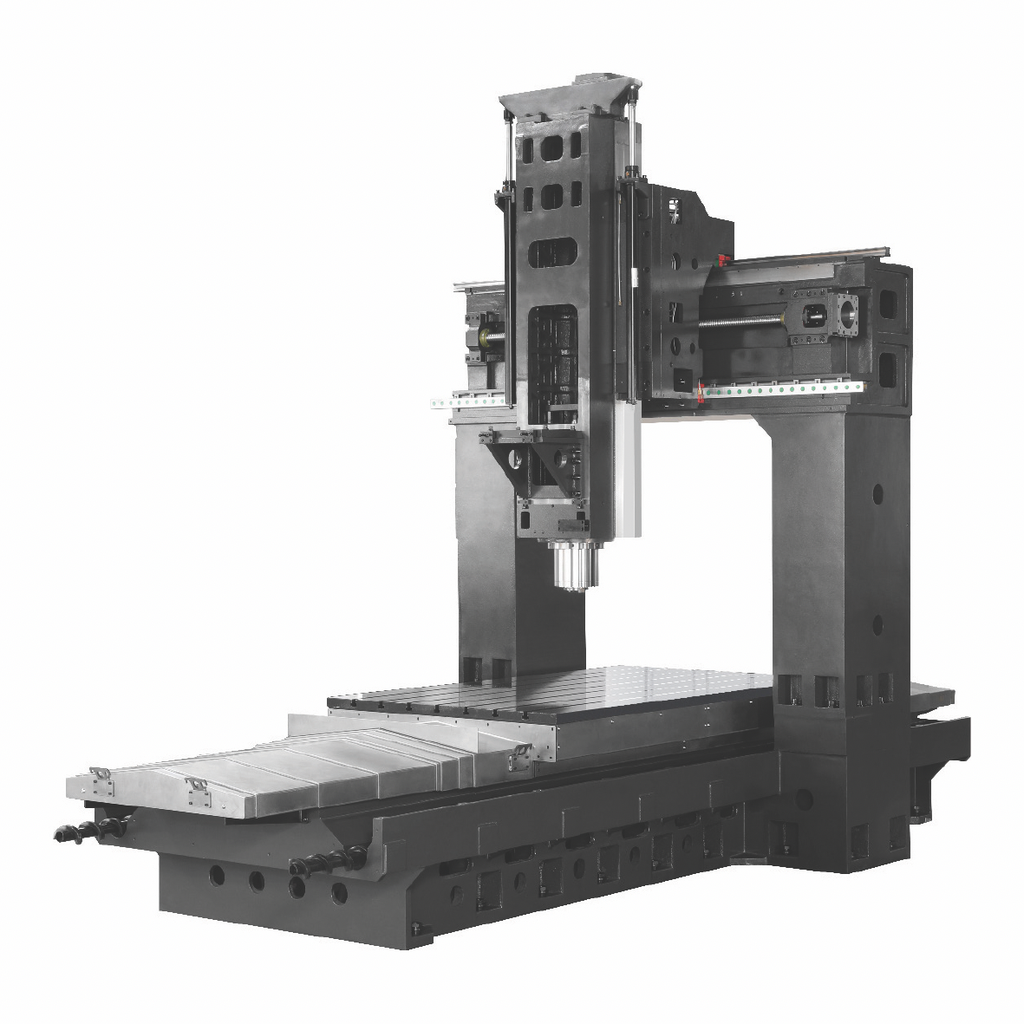

Precision Double Column Machining Centre, ideal for processing large workpieces.
| Technical Specifications | V2013 |
| Table |
| Table size | 2100×1200mm |
| T-slot (width x number x distance) | 18mm × 7 × 150mm |
| Max. load | 4000kgs |
| Travel |
| X/Y/Z Travel | 2000/1300/800mm |
| Spindle nose to table | 200-1000mm |
| Distance between columns | 1380mm |
| Spindle |
| Spindle taper | SK50/BT50/CAT50 |
| Spindle servo motor | 22/60kW Siemens; 15/18.5kW Fanuc |
| Spindle speed | 6000RPM min-1 |
| Spindle Transmission | Belt Drive |
| Feed |
| Rapid speed | 15/15/12 m/min |
| Cutting speed | 1-10000mm/min |
| Tool changer |
| Number of tools | 24 (option) pcs |
| Max. tool length | 400mm |
| Max. tool diameter | 120/250mm (next release) |
| Max. tool weight | 15kgs |
| Accuracy |
| VDI 3442 (Full travel) | Positioning accuracy 0.015 Positioning repeatability 0.012mm |
| Dimensions & weight |
| Dimensions | 6924 x 5010 x 4250mm |
| Weight | 16500kgs |
STANDARD ACCESSORIES
• Fully enclosed splash guard
• Air-conditioned electrical cabinet
• Rigid tapping
• Ethernet ,CF card and USB interface
• Automatic lubrication system
• Coolant system
• Spindle cooling system
• LED working lamp
• End of program light
• Electronic handwheel(MPG)
• Tool box
• Leveling bolts and blots
• Coolant gun
• Air gun
• User Manuals
OPTIONAL ACCESSORIES
• Gear box
• 24 pockets arm tool changer
• 40 pockets chain tool changer
• Chip conveyor (two screw type and one chain type)
