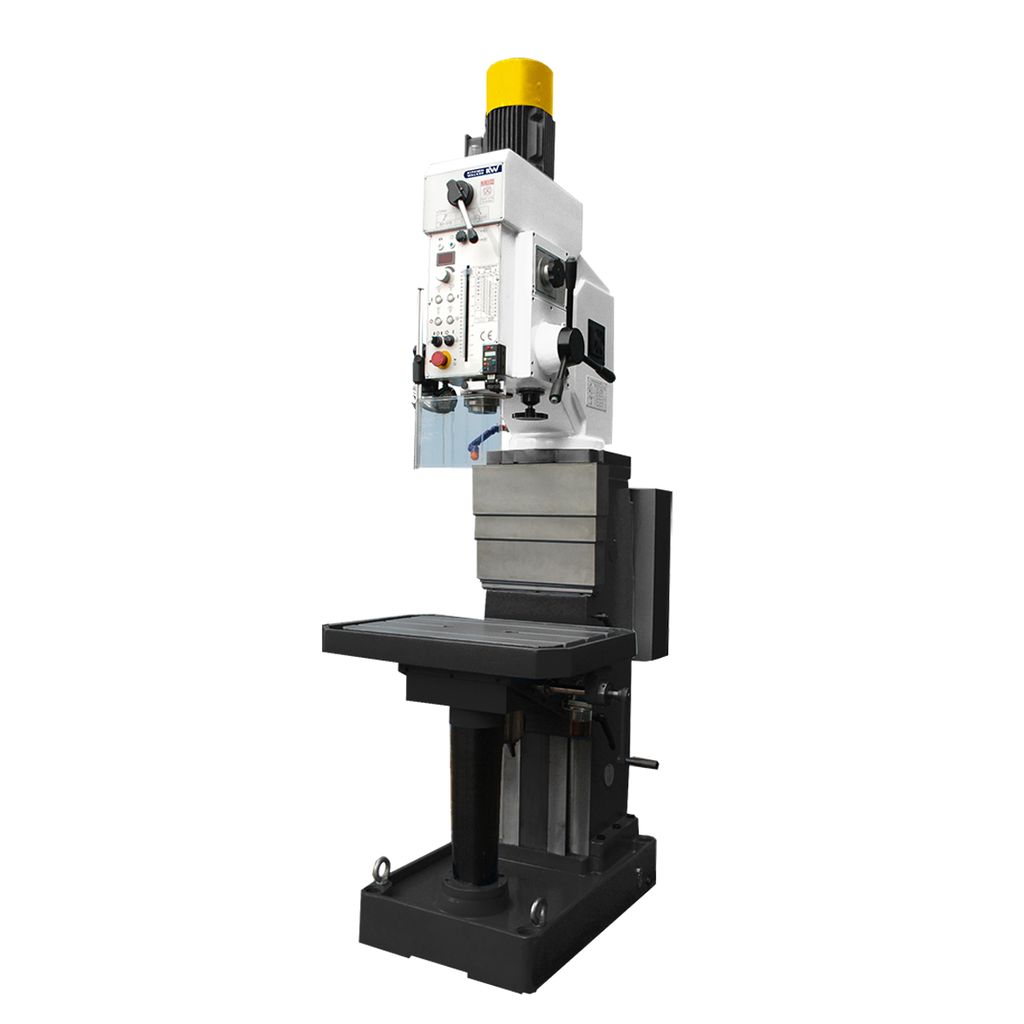

KITCHEN & WALKER GP50S-TVS SERIES SQUARE COLUMN DRILLING MACHINE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity (Steel): 50mm
Drilling Machines
A high performance drilling machine, our GP50S-TVS series features a high torque motor and drill drift.
| Model | GP50S-TVS |
| Max.Drilling Diameter for Steel | 50mm |
| Max.Tapping Diameter | 30mm |
| Max.Milling Cutter Diameter | 80mm |
| Max.Travel of Spindle | 200mm |
| Max.Distance from Spindle to Generating Line of Column | 240mm |
| Max.Distance from Spindle Nose to Surface of Worktable | 930mm |
| Max.Travel of Worktable and Bracket | 540mm |
| Max.Travel for the Spindle Box in Up and Down Position | n/a |
| Max.Distance Between Spindle End to the Worktable Surface | n/a |
| Max.Stroke of the Spindle | n/a |
| Spindle Taper Bore | MT4 |
| Spindle Speed Steps | Stepless |
| Spindle Speed Range | 50-2200r/min |
| Spindle Feed Steps | 6 |
| Spindle Feed Range | 0.18,0.12,0.17,0.24, 0.35,0.50mm/r |
| Swivel Angle of Worktable | ±45° |
| Mode of Spindle Feed | Electromagnetic |
| Dimension of Worktable(L×W) | 740 × 520mm |
| Power of Motor | 3kW(4hp)(Converter motor) |
| Net Weight | 1050kg |
| Machine Dimension(L×WxH) | 740 × 850 × 2510mm |
Standard Accessories
• Drill Chuck
• Reducing Sleeve
• Drill Drift
Optional Accessories
• 125mm Precision Vice
• Cross Worktable (640 x< 205mm)
• Milling Cutter and Collet Set
• Milling Cutter
