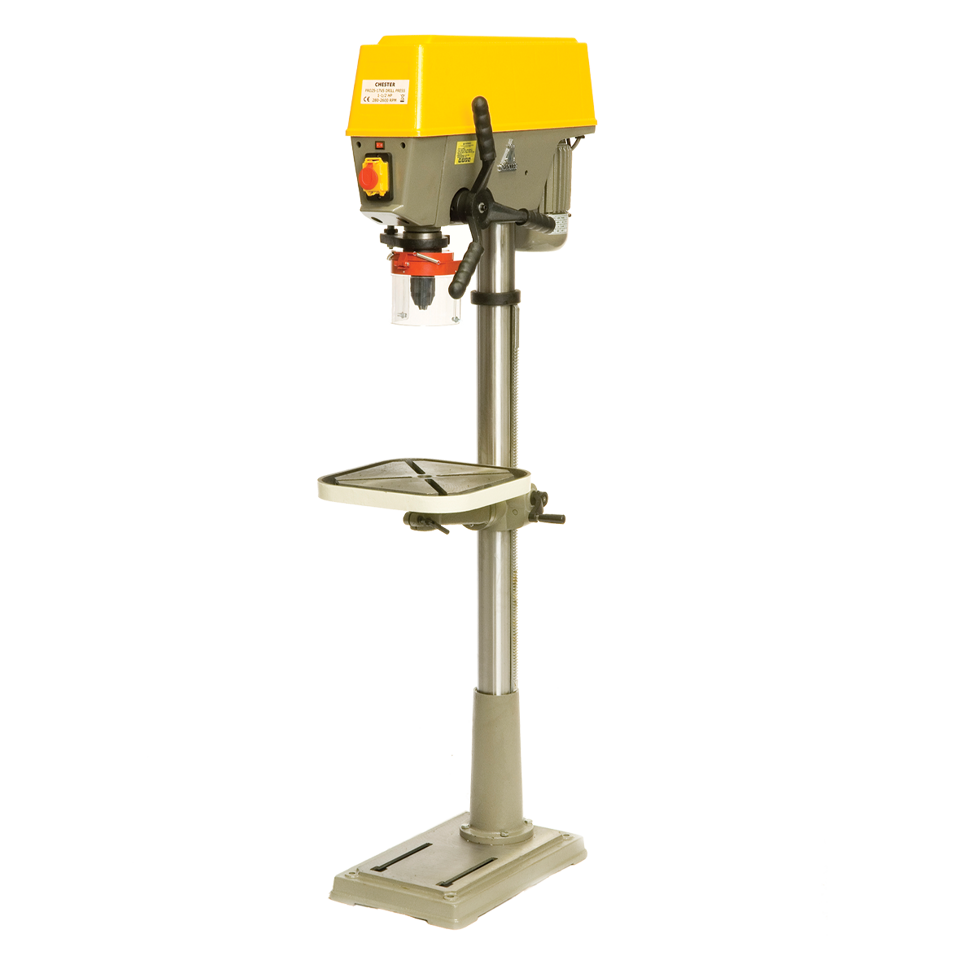

Ex Display Chester PRO25-17VS Variable Speed Drill
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity (Steel): 25mm
Stock Clearance
Ex display Pro25-17VS 380v pedestal drill. £792 exc vat and delivery.
| Model | PRO25 – 17VS |
| Drilling Capacity (Mild Steel) | 25mm |
| Drilling Capacity (Cast Iron) | 25mm |
| Tapping Capacity (Mild Steel) | MT3 |
| Tapping Capacity (Cast Iron) | MT3 |
| Spindle Taper | MT3 |
| Distance from Spindle to Column | 216mm |
| Distance from Spindle to Table(min/max) | 130-800mm |
| Distance from Spindle to Base(min/max) | 1240mm |
| Rotation of Table along with column | 360° |
| Tilting Angle of Table | 45°-45° |
| Vertical Travel of Table | 670mm |
| Table Size | 345x345mm |
| Number and size of T slots on Table | 4-16X125mm |
| Distance between T Slots | 90° |
| Maximum Spindle Traverse(hand/power) | 80mm |
| Number of Spindle Speeds | step less |
| Range of Spindle Speeds | 280-2600rpm |
| Number of Feed Rates | 1or 3 |
| Power Feed Rates | 50hz |
| Base Size Overall | 520X320mm |
| Base Working Surface | 240X280mm |
| Number and Size of T Slots on Base | 2/15X175mm |
| Distance between T Slots | 160mm |
| Column Diameter | 80mm |
| Main Motor Power | 1kw(1.33hp) |
| Overall Height | 1700mm |
| Net Weight | 100kg |
| Case Dimensions | 520x320x1700mm |
**Please contact us for shipping / delivery price details**
Comes with 3-months parts-only warranty
