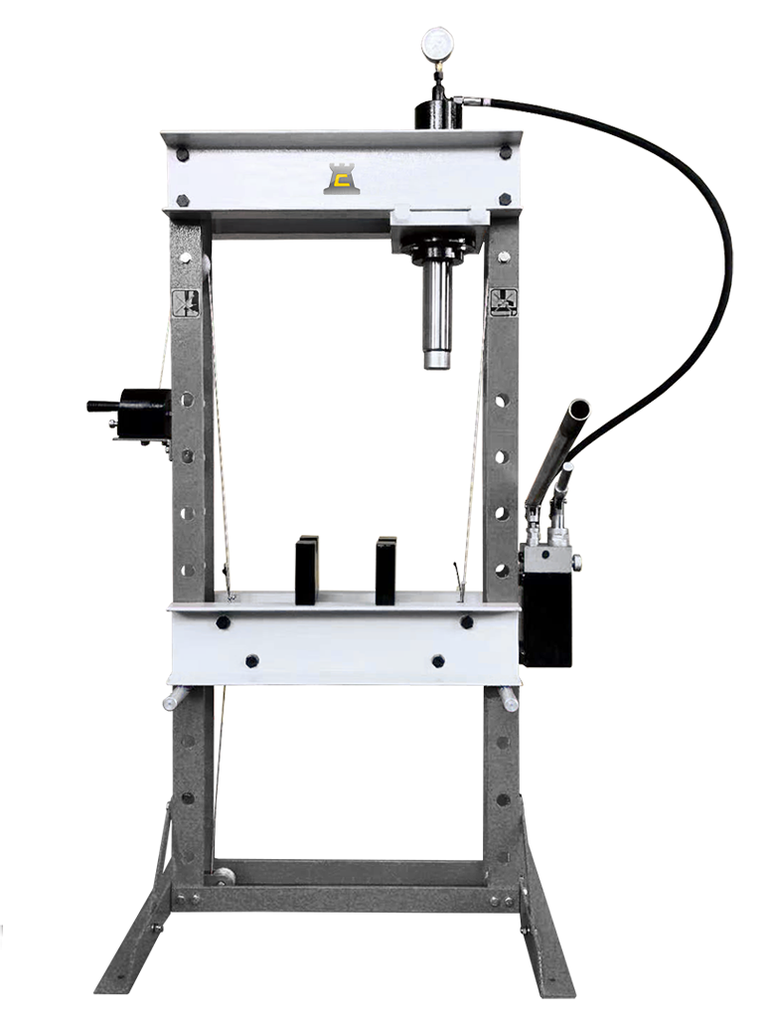

CHESTER WPM SERIES MANUAL WORKSHOP PRESS, WP30M

Name: CHESTER WPM SERIES MANUAL WORKSHOP PRESS, WP30M
SKU: FAB-WP30M
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP30M
Maximum Force	31T
Hydraulic Pressure	60Mpa
Cylinder Stroke	180mm
Worktable	2 Support Blocks (220x125mm each)
Worktable Travel (Increments x Distance)	8 x 120mm
Power Source	Manual Pump (High/Low Pressure)

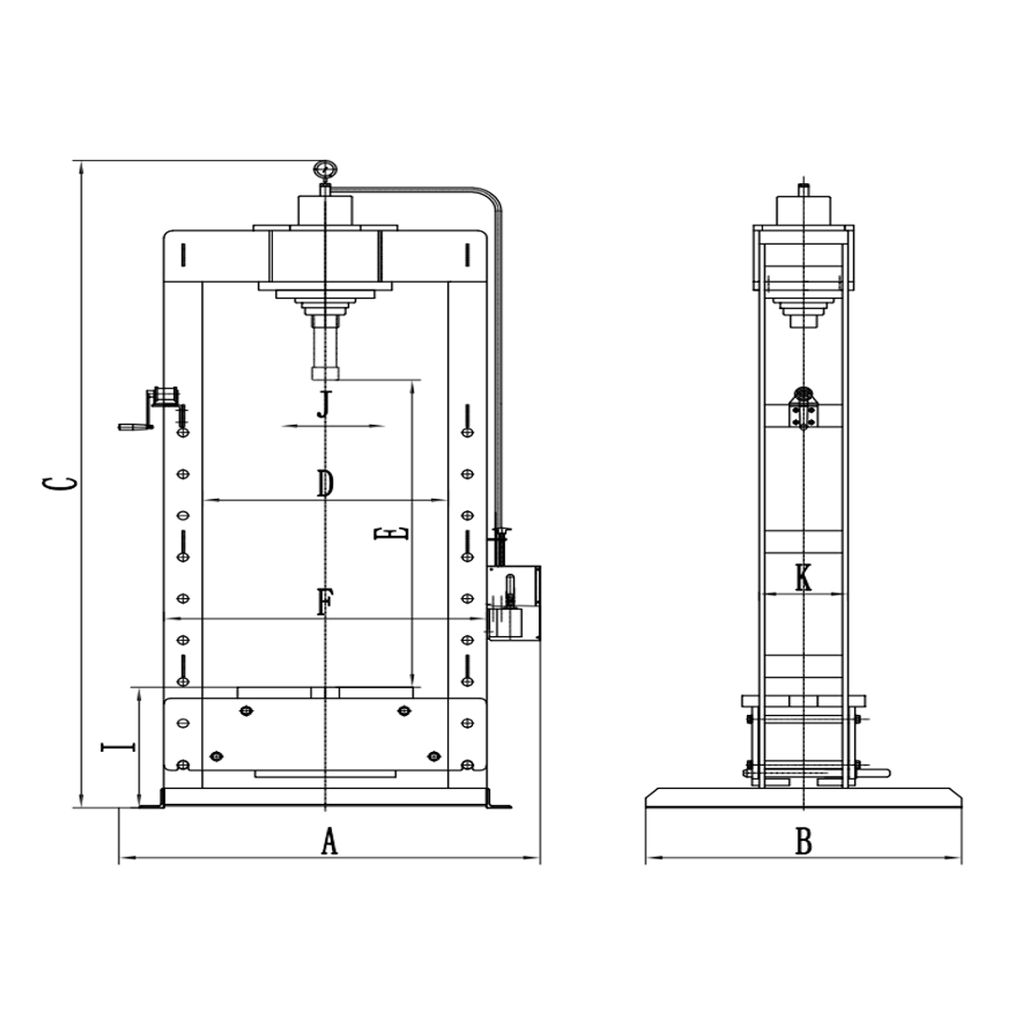

A	1105mm
B	750mm
C	1880mm
D	600mm
E	1050mm
F	730mm
I	328mm
J	400mm
K	125mm
Weight	202kg

Documents

WPM Series.pdf
