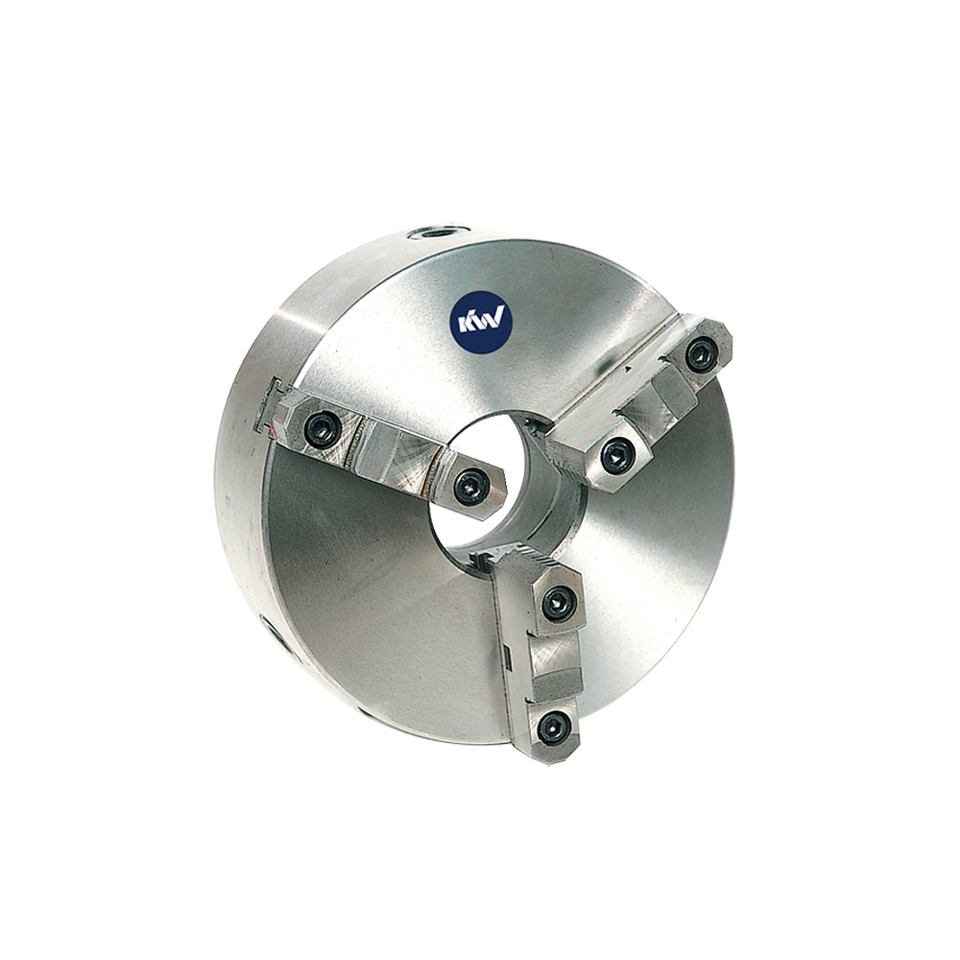

Precision lathe jaw chuck for work holding.
Size | 380mm |
Camlock | D1-8 |
Weight | 87kg |
Each chuck is supplied with 1 set reversible jaws and chuck key.

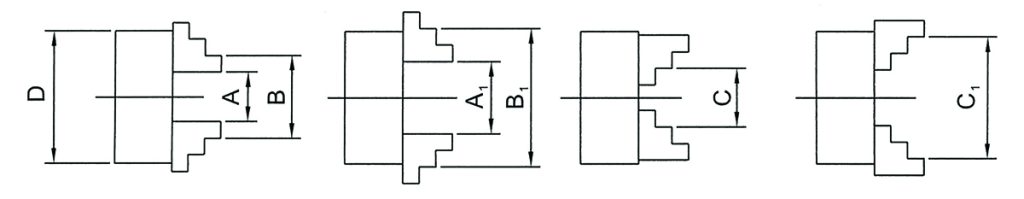

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 380mm | 11.5-210mm | 95-400mm | 110-400mm |

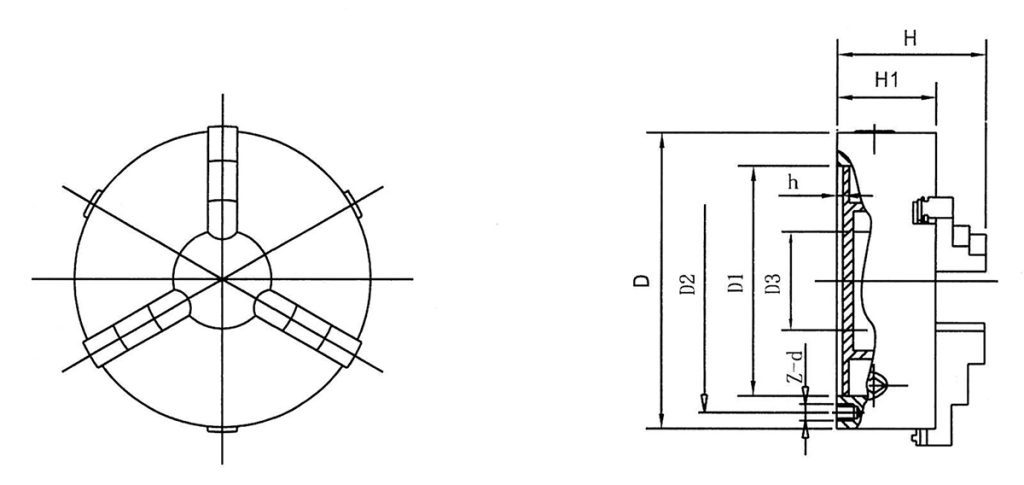

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 380mm | 325mm | 350mm | 135mm | 98mm | 6mm | 3mm M16 | 155.5mm |
