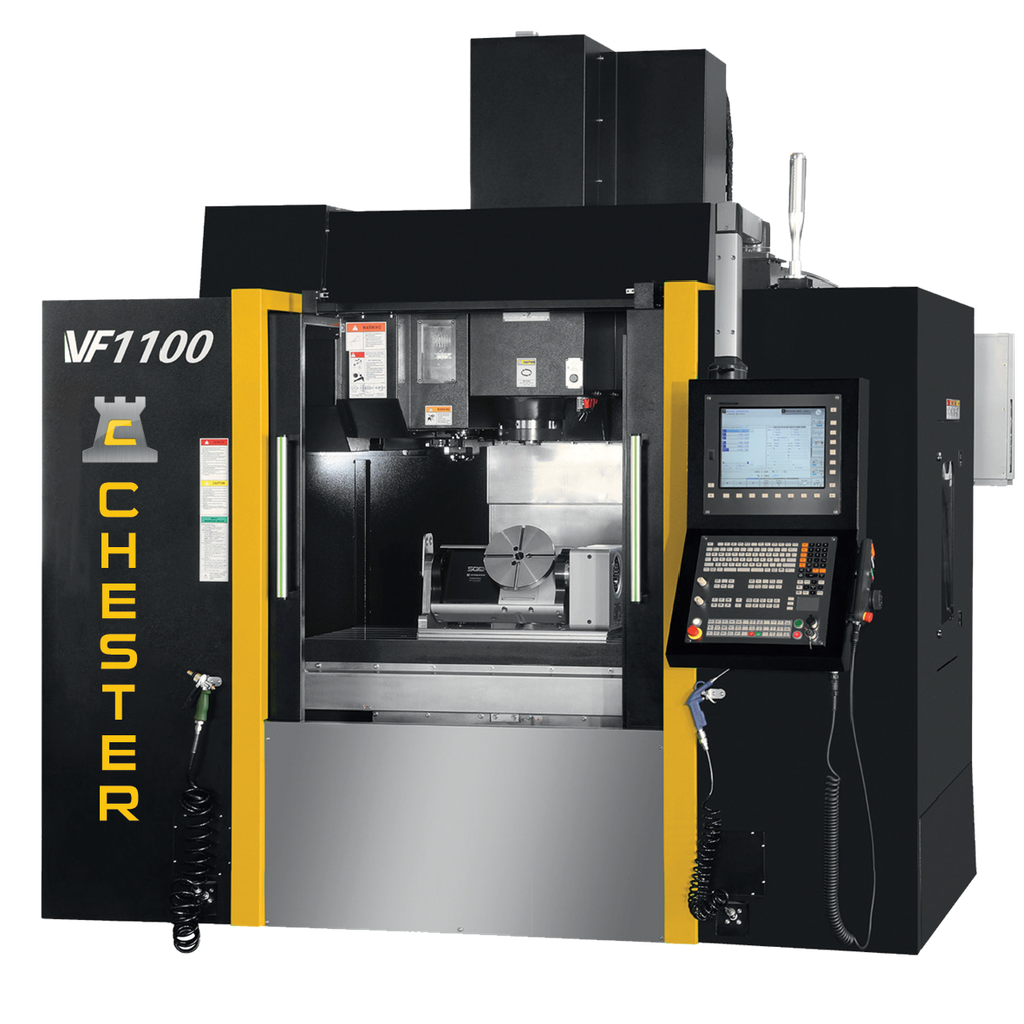

CHESTER VF1100 HIGH SPEED ULTRA HIGH PERFORMANCE CNC MACHINING CENTRE

CHESTER VF1100 HIGH SPEED ULTRA HIGH PERFORMANCE CNC MACHINING CENTRE

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1300 x 600mm
Spindle Taper: SK40 / BT40 / CAT40
CNC Machining Centres
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

The Chester VF series are Ultra High Performance Machining Centres specially designed for high speed and high efficiency machining applications.

Our CNC Machining Centres offer:

  • Ultra high performance and high rigidity for Precision mould making
  • High spindle torque
  • BBT spindle for higher rigidity
  • Roller type linear guideway
  • Direct drive provides backlash free, best accuracy, reliability and stability
  • Extra wide machine column and base design ensures the high rigidity during high speed movement
  • Motor seat cooling circuit
  • Oil cooled ballscrew (option)
  • Linear scales (option)

Technical SpecificationsVF1100
Table
Table size1300 x 600 mm
T-slot (width x number x distance)18 x 6 x 100mm
Max. load1000kgs
Travel
X/Y/Z Travel1100 / 650 / 600mm
Spindle nose to table130- 830mm
Spindle centre to column697mm
Spindle
Spindle Taper
SK40 / BT40 / CAT40
Spindle servo motor20 / 53 Siemens, 15 / 30 Fanuc kW
Spindle speed15000 Siemens rpm min-1, 12000 rpm min-1 Fanuc
Spindle (option 1)
HSK A63, 20000rpm
Motor power torque
20/24kW; 35/42Nm
Spindle(option 2)HSK A63, 20000rpm
Motor power/torque25/28kW; 87/105Nm
Feed
Rapid feed X/Y/Z24 m/min
Cutting feed
1 - 12.000mm/min
Tool changer

Number of tools
24 pcs
Max. tool length
300mm
Max. tool diameter
78 (125)mm
Max tool weight
8kg
Accuracy (VDI 3441)
Positioning accuracy (without linear encoder)0.012mm / Full Travel
Positioning repeatability (without Linear encoder)0.008mm / Full Travel
Positioning accuracy (with linear encoder)0.008mm / Full Travel
Positioning repeatability (with linear encoder)0.006mm / Full Travel
Dimensions & weight
Dimensions3850 x 3093 x 3150mm
Weight8000kgs

STANDARD ACCESSORIES

• Fully enclosed splash guard

• Direct drive spindle 15000 rpm

• 24 pockets arm tool changer

• Two screw type and one chain type

• Spindle cooling system

• Air-conditioned electrical cabinet

• Motor seat cooling circuit

• Rigid tapping

• Ethernet, CF card and USB interface

• Automatic lubrication system

• Coolant system

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• Air blast during cutting

• User Manual



OPTIONAL ACCESSORIES

• Direct drive spindle 6000 rpm, BBT50

• Motor spindle 20000 rpm, HSK A63

• CTS coolant through spindle + ATS

• Oil cooled ballscrew

• Oil skimmer

• Linear scales

• 4th axis

• 4/5th axis

• Workpiece probe

• Tool probe

Documents
VF Series VMC.pdf
